Feature:

* 100% brand new and never used

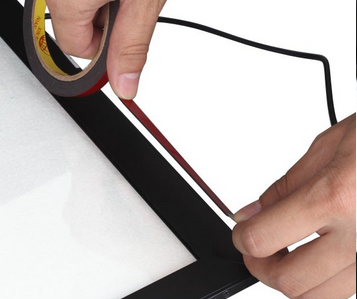

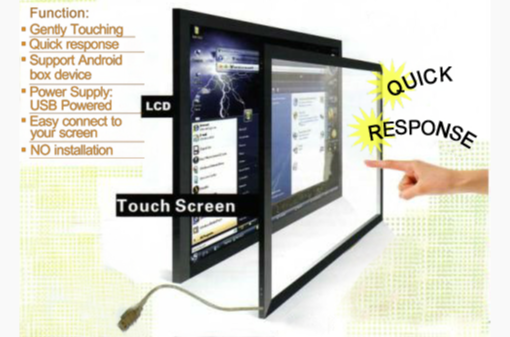

* Easy to do DIY install the touch screen panel

* Input method: fingers or gloved hands

* High quality and high accuracy

* High precision and high transmission in signal, fast response

* Fault tolerance, Stable performance.

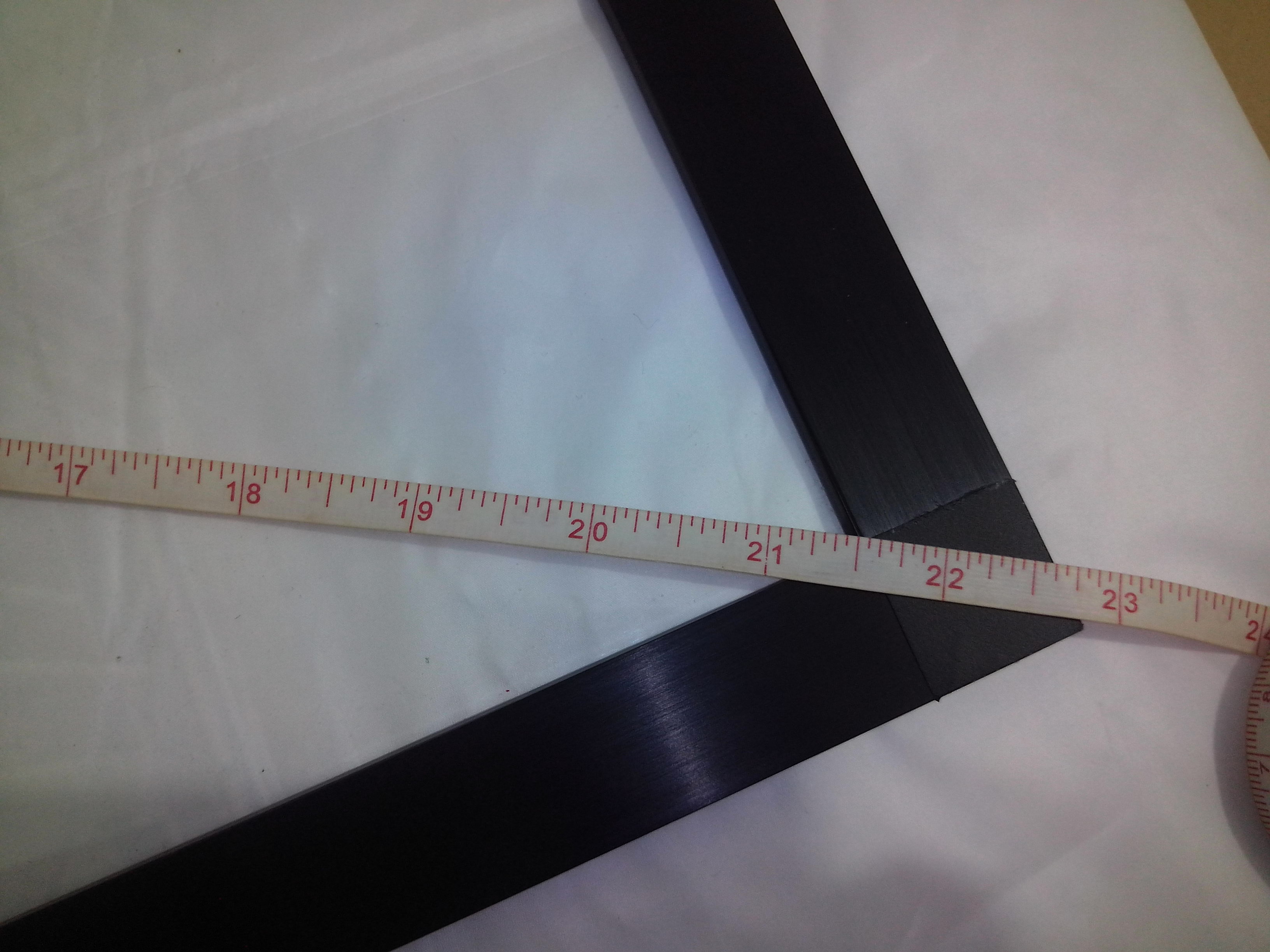

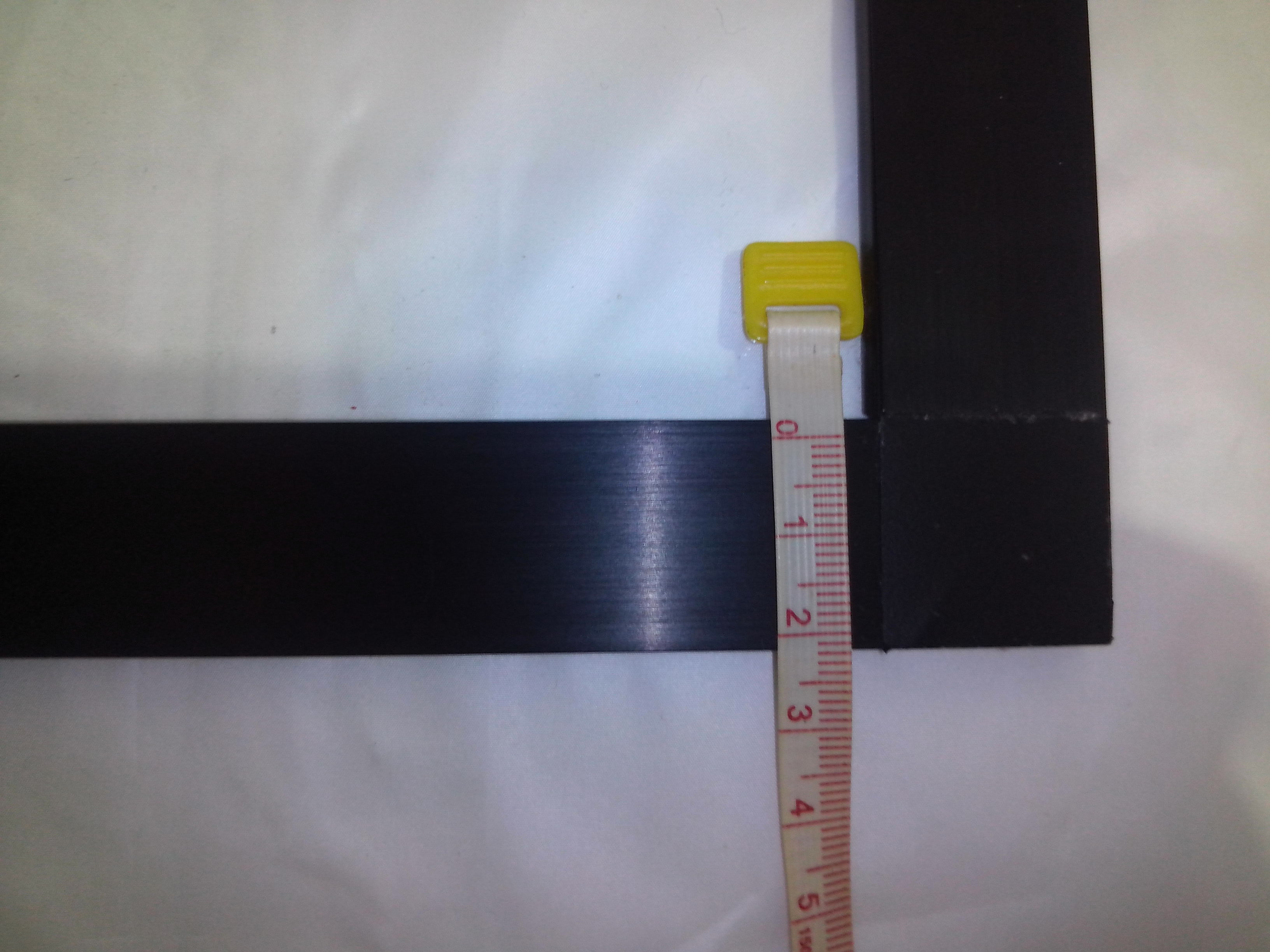

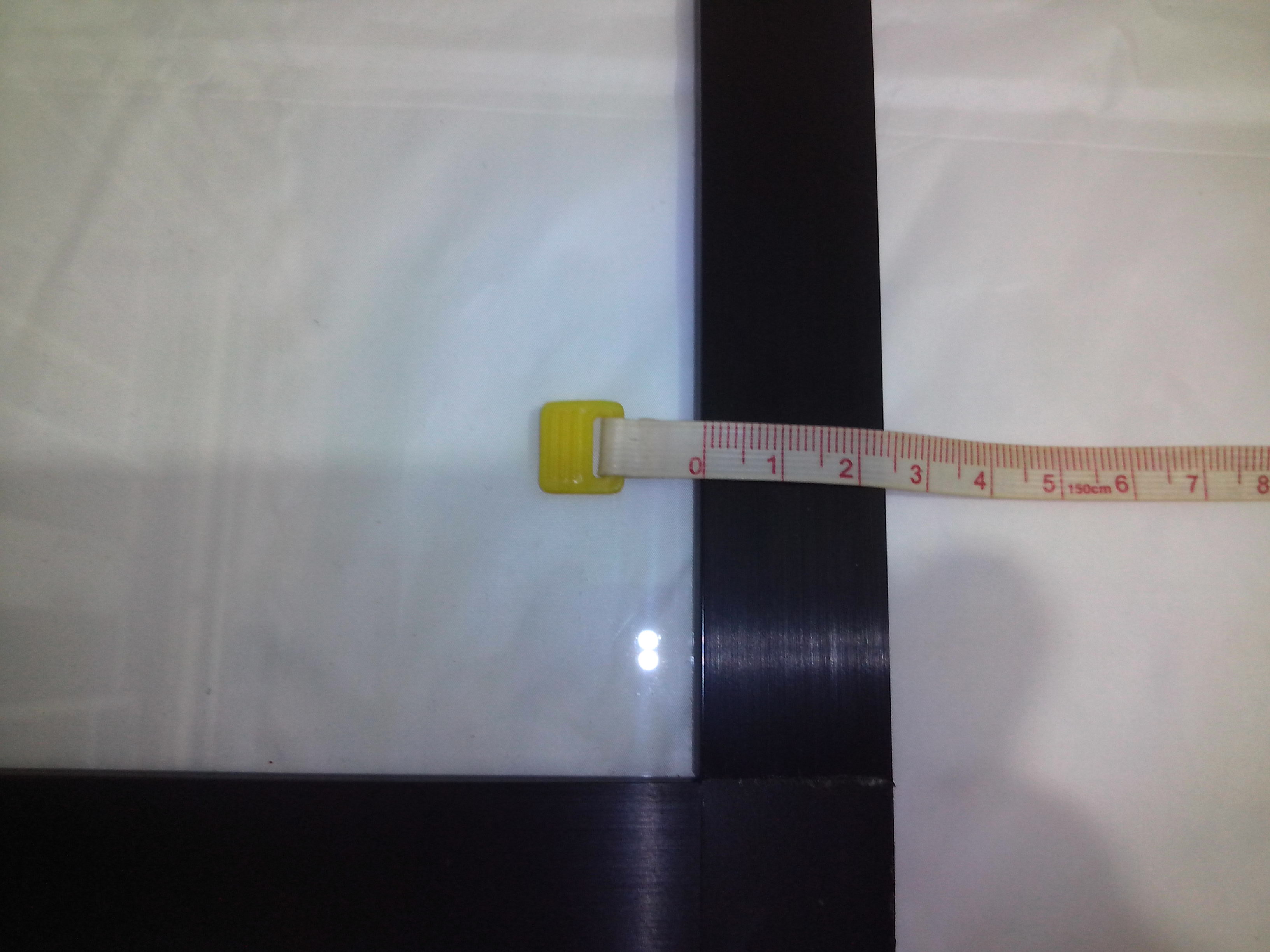

Touch screen thickness

Touch screen integrated controller adopts thin design (Touch screen PCB of 2mm thickness), as well as ultra-narrow Touch screen PCB design, it solve the problem in external frame too thick and border too wide.

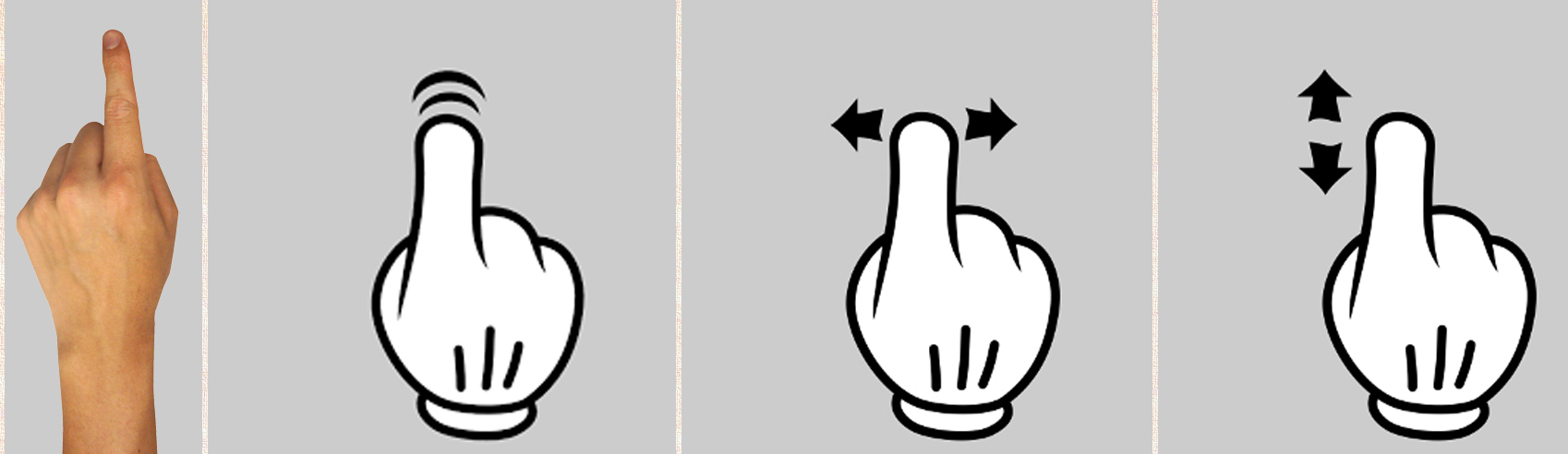

Touch gestures

Touch Screen Operation

Touch screen controller build in mechanism to avoid light Interference by sun, spot light, LED light and other source successfully. Device can run smoothly.

Cleaning issue :

User can wipe the touch screen with a clean soft cloth.

PLEASE DO NOT USE WATER OR CHEMICAL CLEANERS TO CLEAN UP.

It is because raining and water will damage the electric circuit of touch screen device.

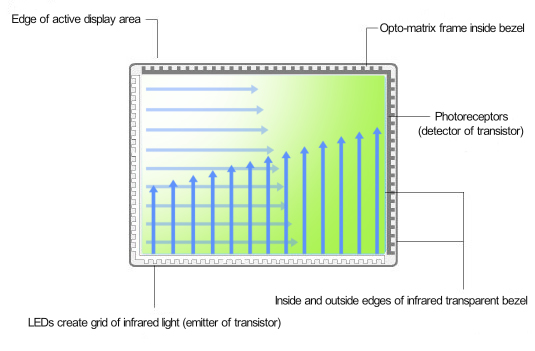

IR touch screen Operating principle / How it works:

The Infrared touchs creen technology uses infrared emitter-collector pairs to project an invisible grid of light a small distance over the surface of the screen.

The frame is integrated with a printed circuit board which contains an array of X-Y IR LED and Photo detector around the edges. The beams of LED cross each other horizontally and vertically and this helps the sensor to find the exact position on the screen.

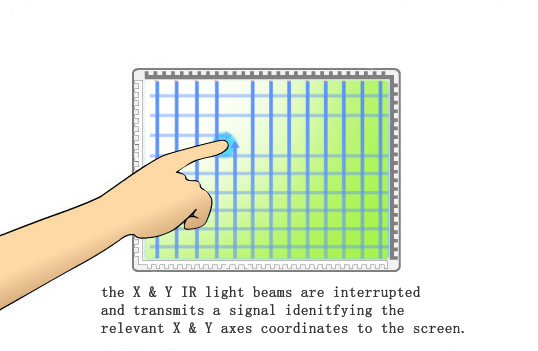

When touch is applied to the screen surface, the X & Y IR light beams are interrupted.

The Photo transistors from the X & Y axes detects the IR light beams which have been interrupted and transmits a signal identifying the relevant X & Y axes coordinates to the Host device.

Items includes:

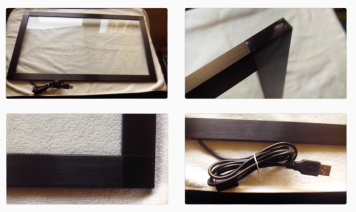

1 x Touch screen Panel (build-in touch screen controller) with usb connect

No driver required (configuration completed in Touch screen hardware controller & Android device by factory)

– – – – We guarantee no malware, No third party software in hardware device;
